Low Cost DCC Controller

This page contains information for the Low Cost DCC Controllers available from SWWS, and for the pre-built DCC command stations.

These budget controllers/command stations can be purchased on Ebay and can be found using this link.

You can also buy software licenses direct via the button below ...

The cheapest command station can be built for as little as £25 excluding power supply.

The DCC controllers/command stations have the following features:

  »  Windows & Linux application with control via either serial USB or WIFI connection
  »  Android application with control via blue-tooth connection
  »  Android voice controlled application with control via blue-tooth connection
  »  Various current drive capabilities depending on H-Bridge chosen, L298N, DRV8871, IBT-2 or IBT-4
  »  Solderless build option using STM32F411RE Nucleo board
  »  Cheap build requiring soldering using STM32F103 blue and black pill boards
  »  Current overload detection, requires INA219 module
  »  Decoder CV reading and writing, reading requires INA219 module
  »  Hardware watchdog to protect against any software error
  »  Upto eight analogue potentiometers for engine speed control, requires ADS1115

The DCC controllers/command stations and software support the following NMRA features:

  »  7-bit & 14-bit engine addresses
  »  Engine functions F0 (FL) to F28 for light and sound
  »  28 & 128 engine speed steps
  »  Accessory decoder control
  »  CV programming
  »  Analogue volume control
  »  DCC Packet queue for controlling DCC commands to accessories and engines

There are currently three types of command station: a USB serial controller, a serial controller with Bluetooth and a WIFI controller. All command stations use the same Windows applications but there are different Android applications for Bluetooth and WIFI. All documents and programming files can be found on the downloads page.

Frequently asked questions can be accessed via this link.

A low cost DCC forum can be found at http://low-cost-dcc.freeforums.net/

The following screen shots are examples from both the Windows and Android applications.

Windows/Linux Application Screen Shots

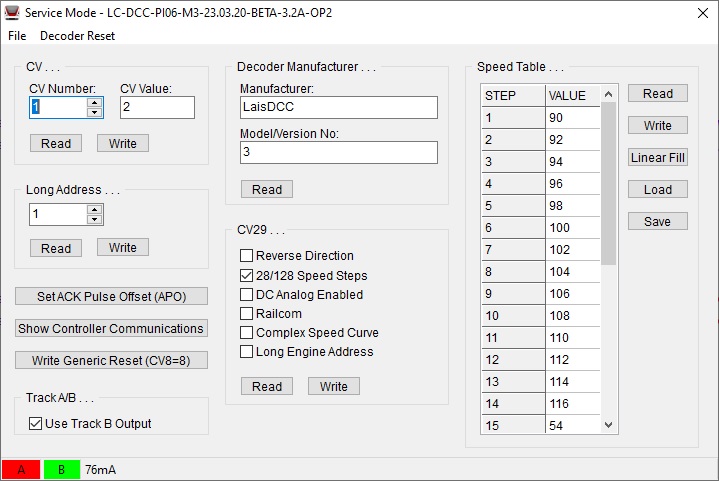

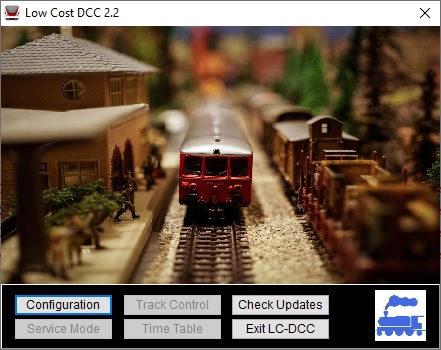

Application Start Screen	Service Mode Screen

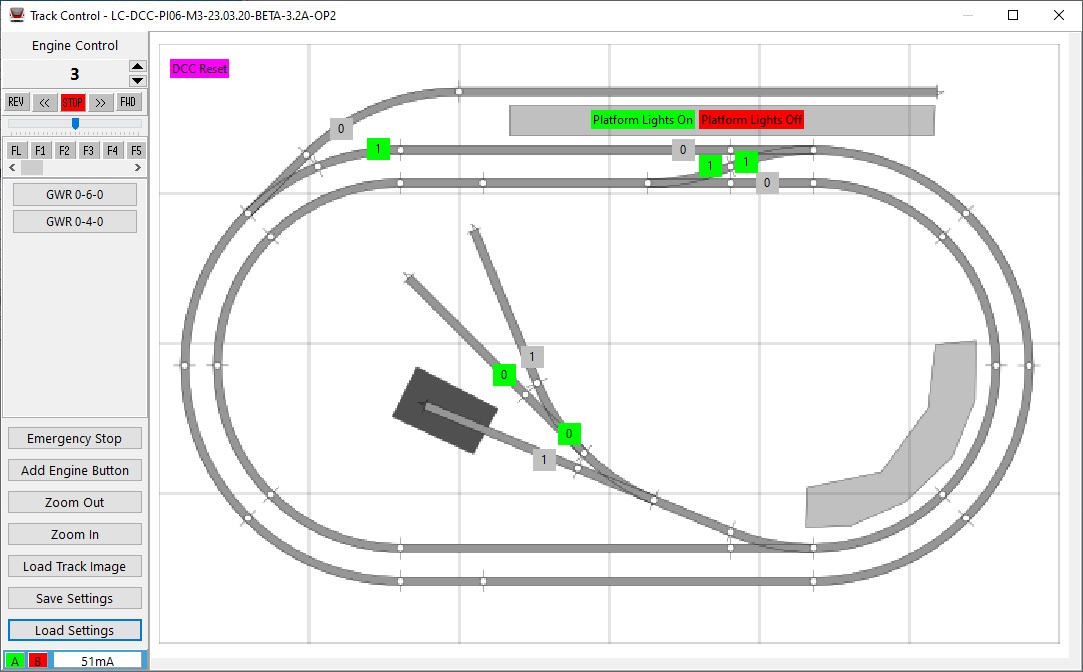

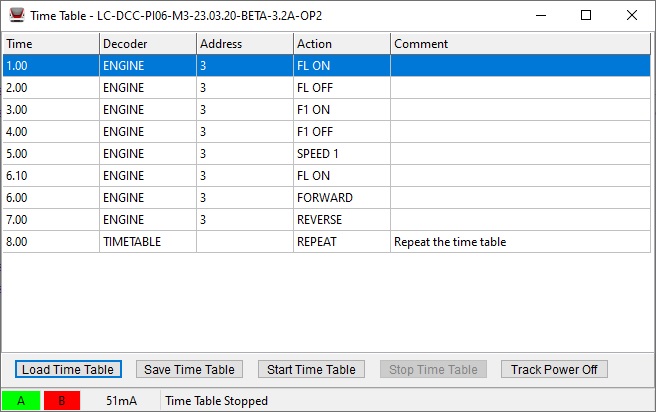

Time Table Screen	Track Control Screen

Android Application Screen Shots

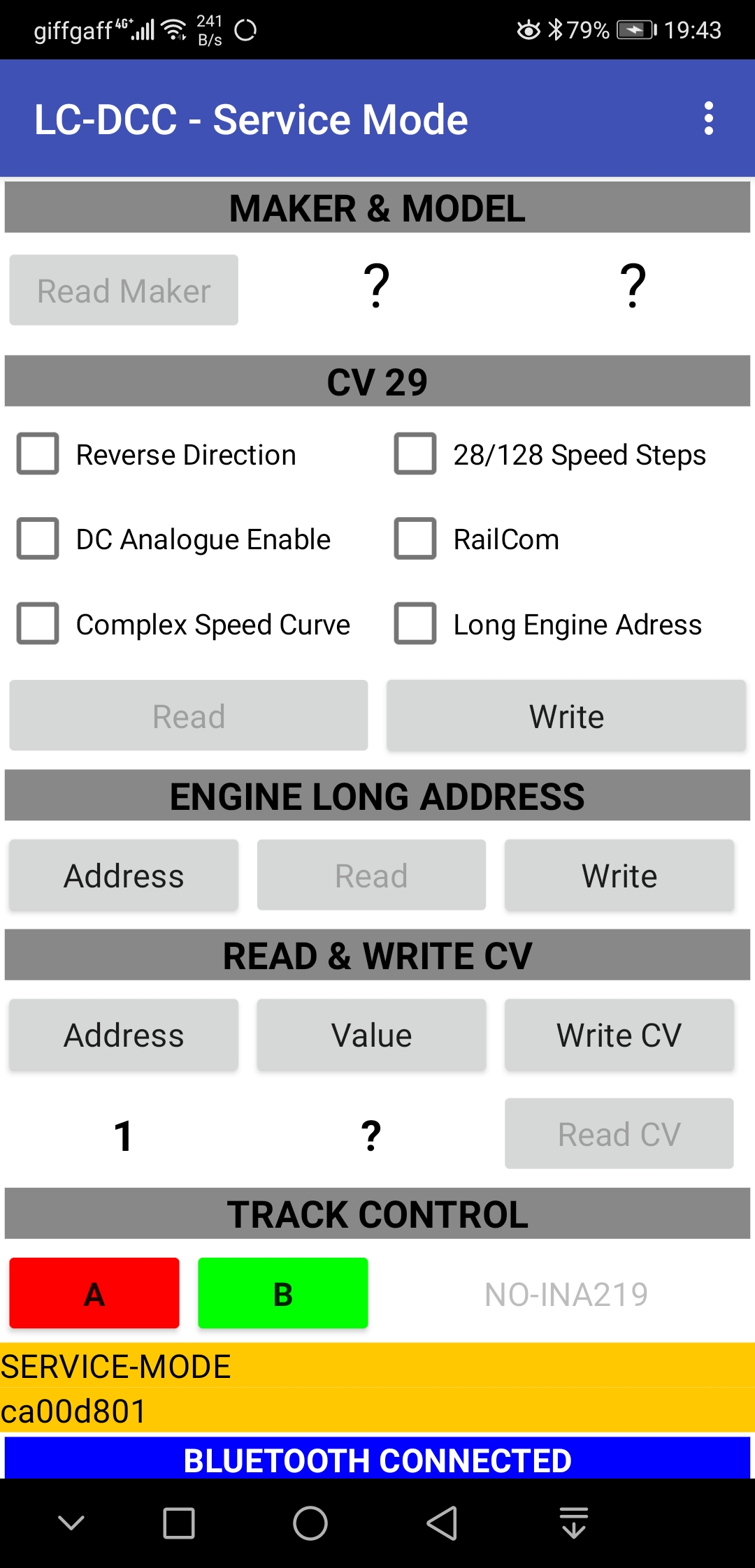

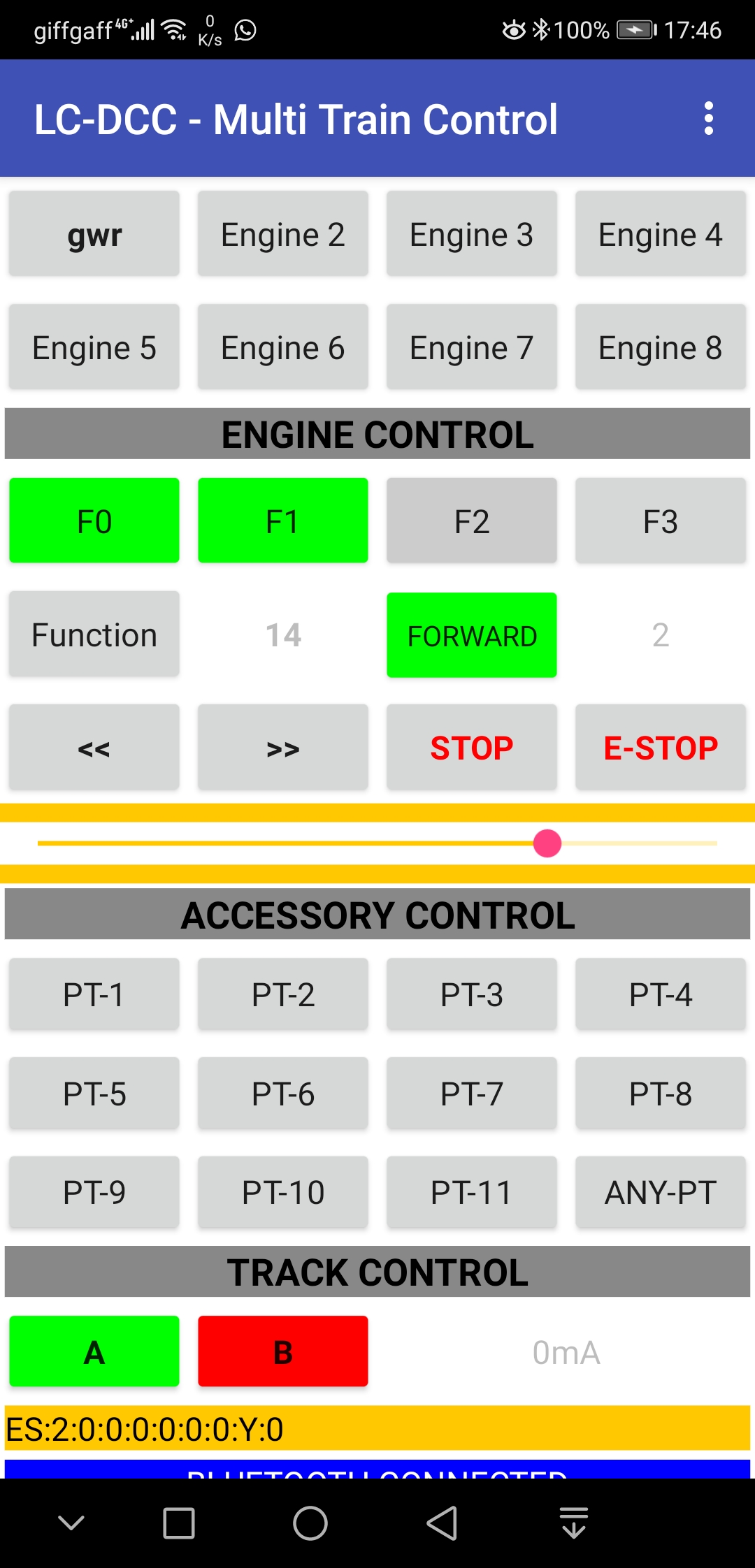

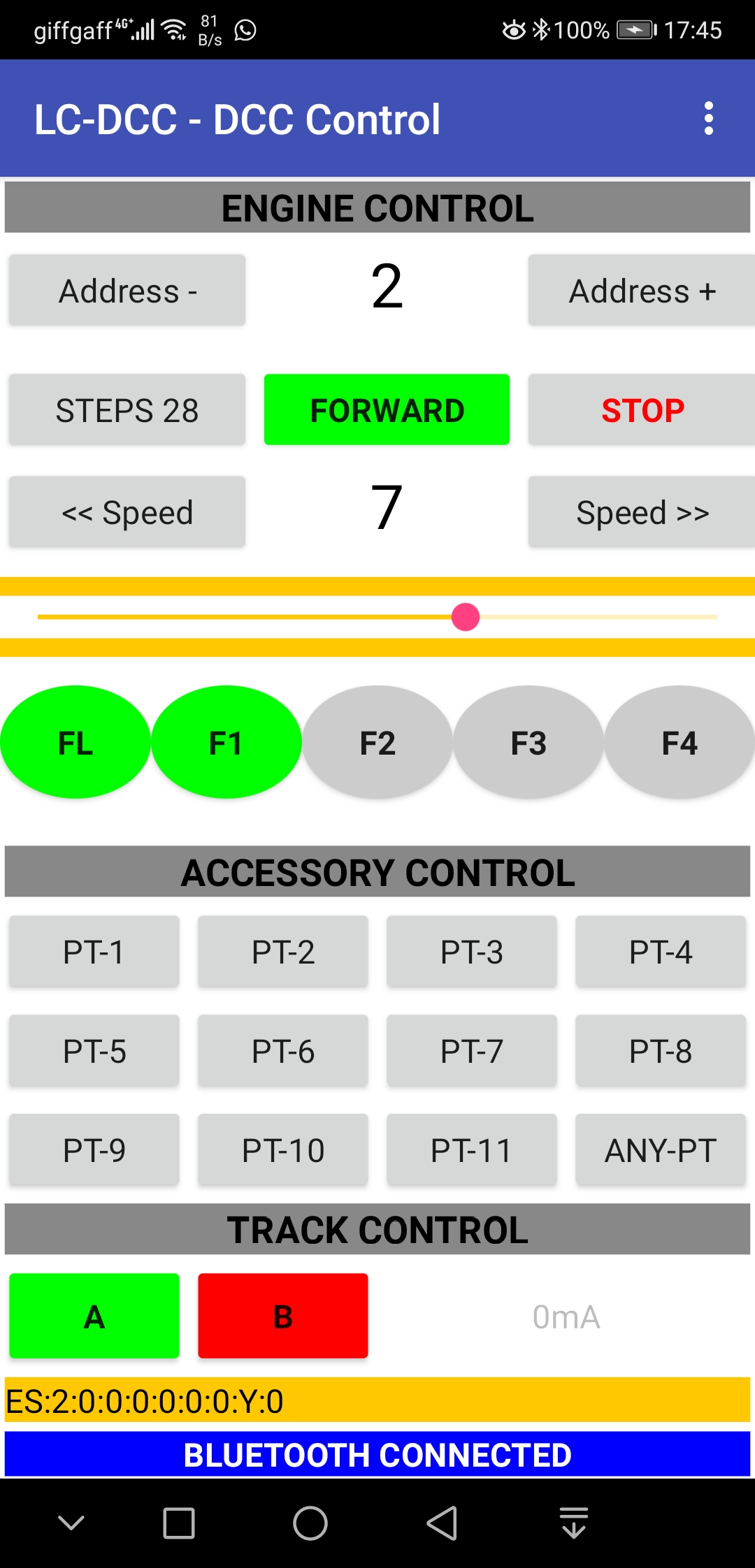

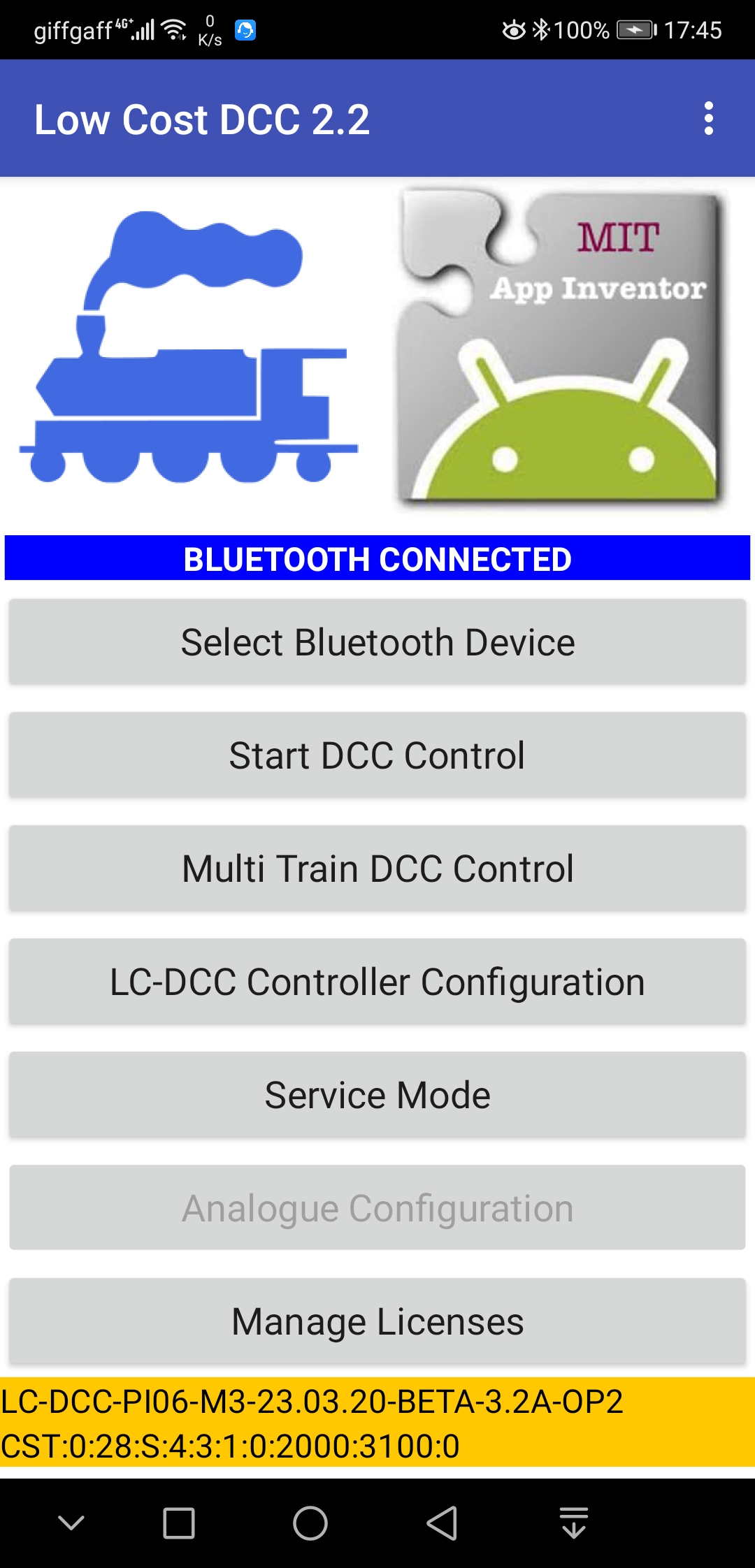

Start Screen	Engine Control Screen	Multi-Engine Control Screen	CV Programming Screen

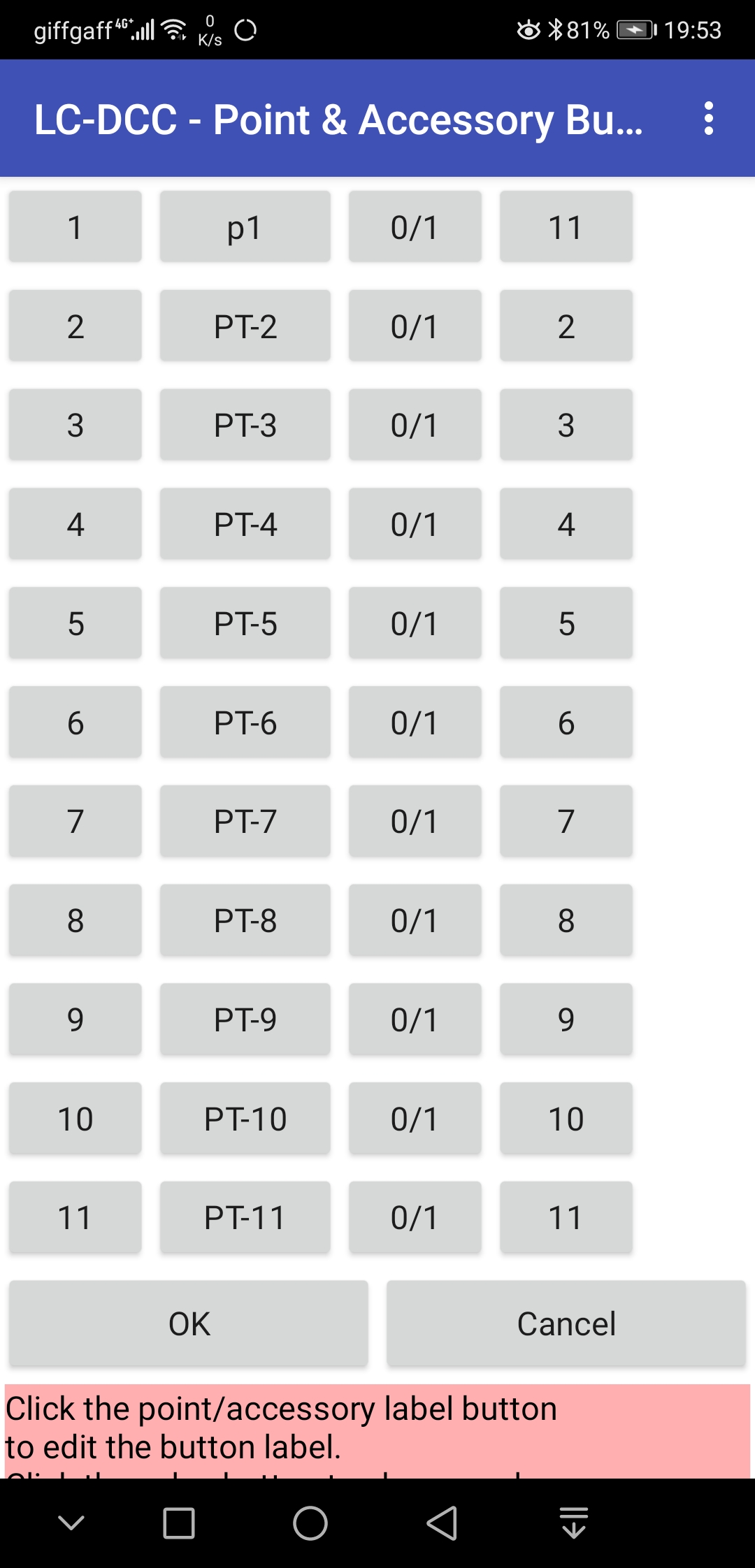

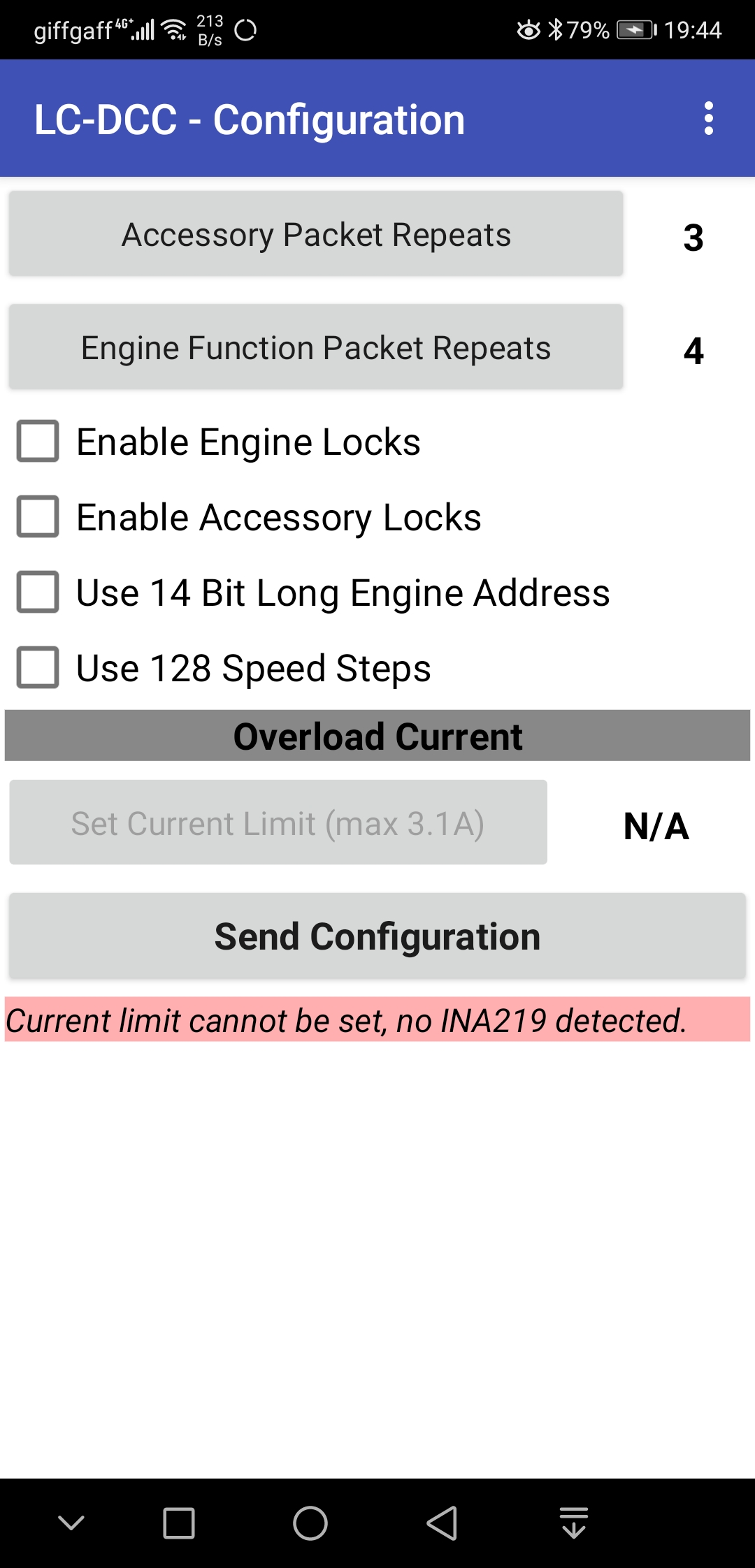

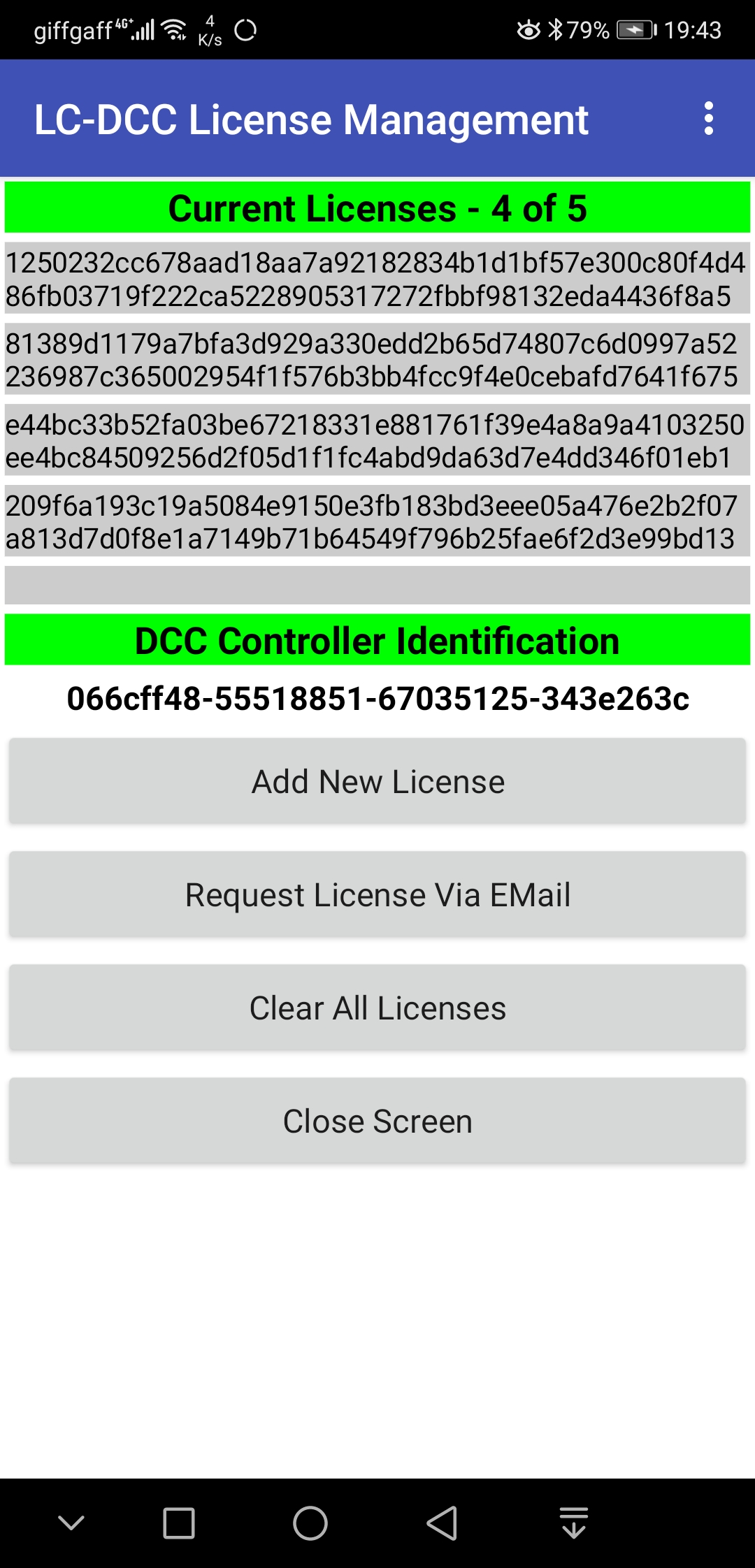

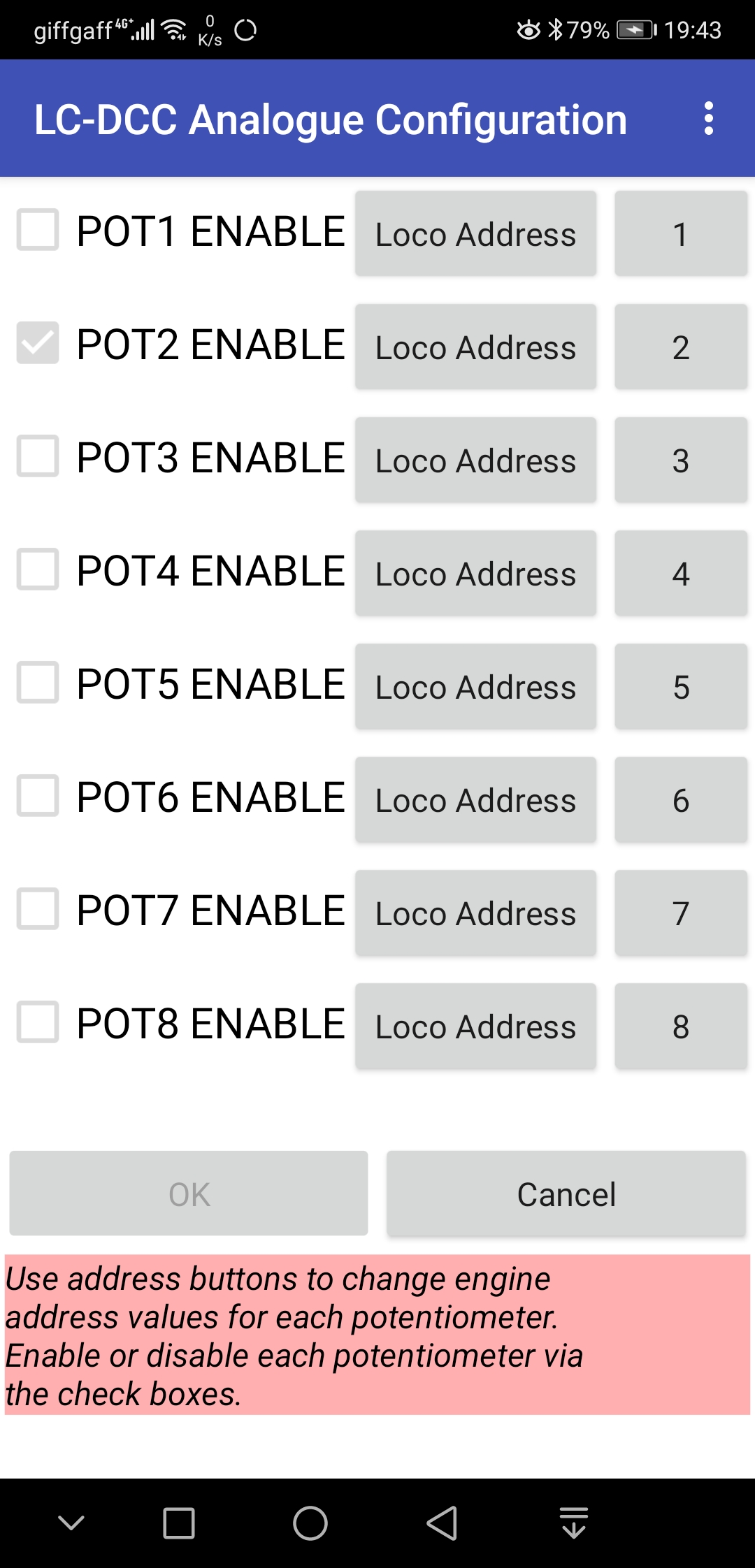

Controller Configuration Screen	Analogue Configuration Screen	License Manager Screen	Accessory Button Configuration

Android Voice Controlled Application Screen Shots

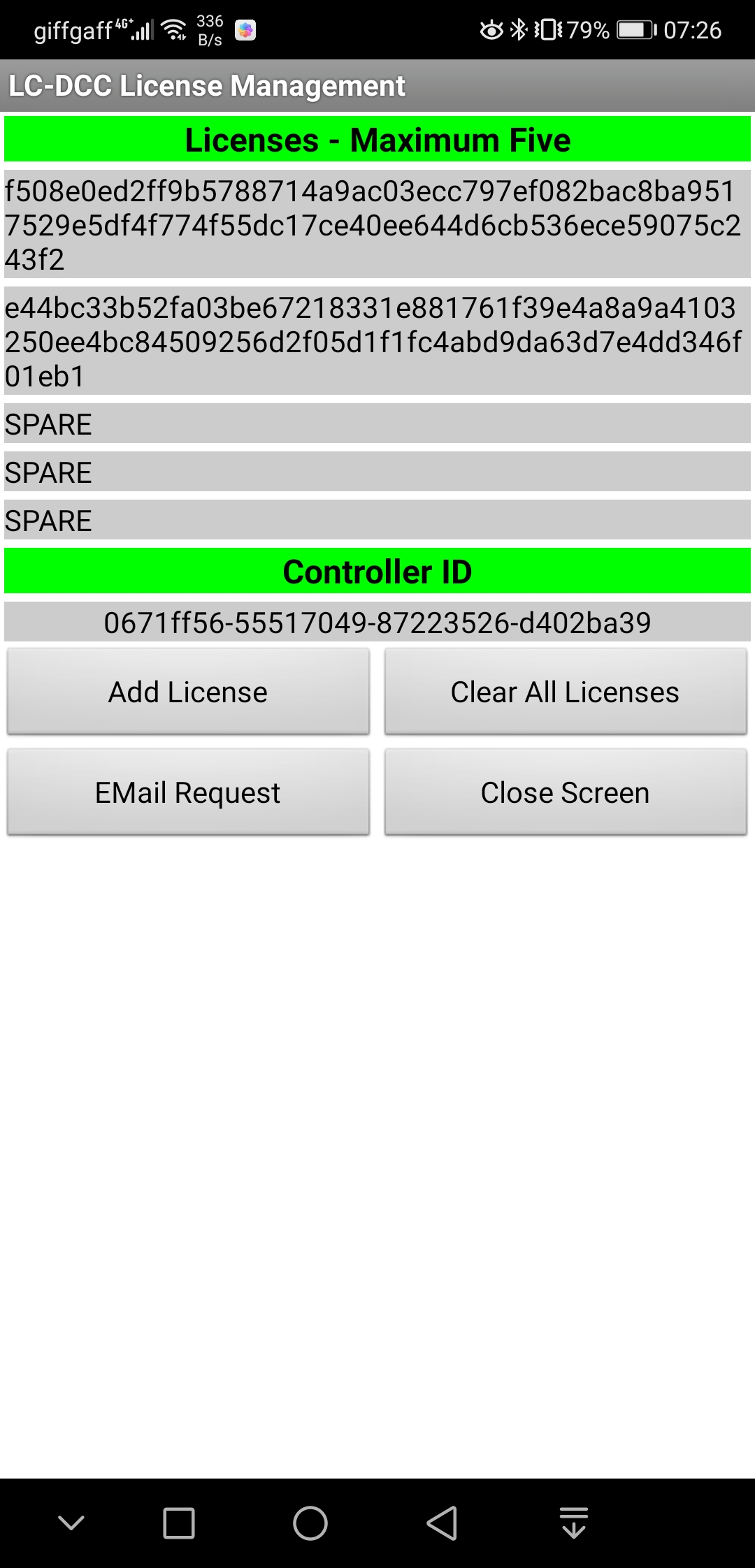

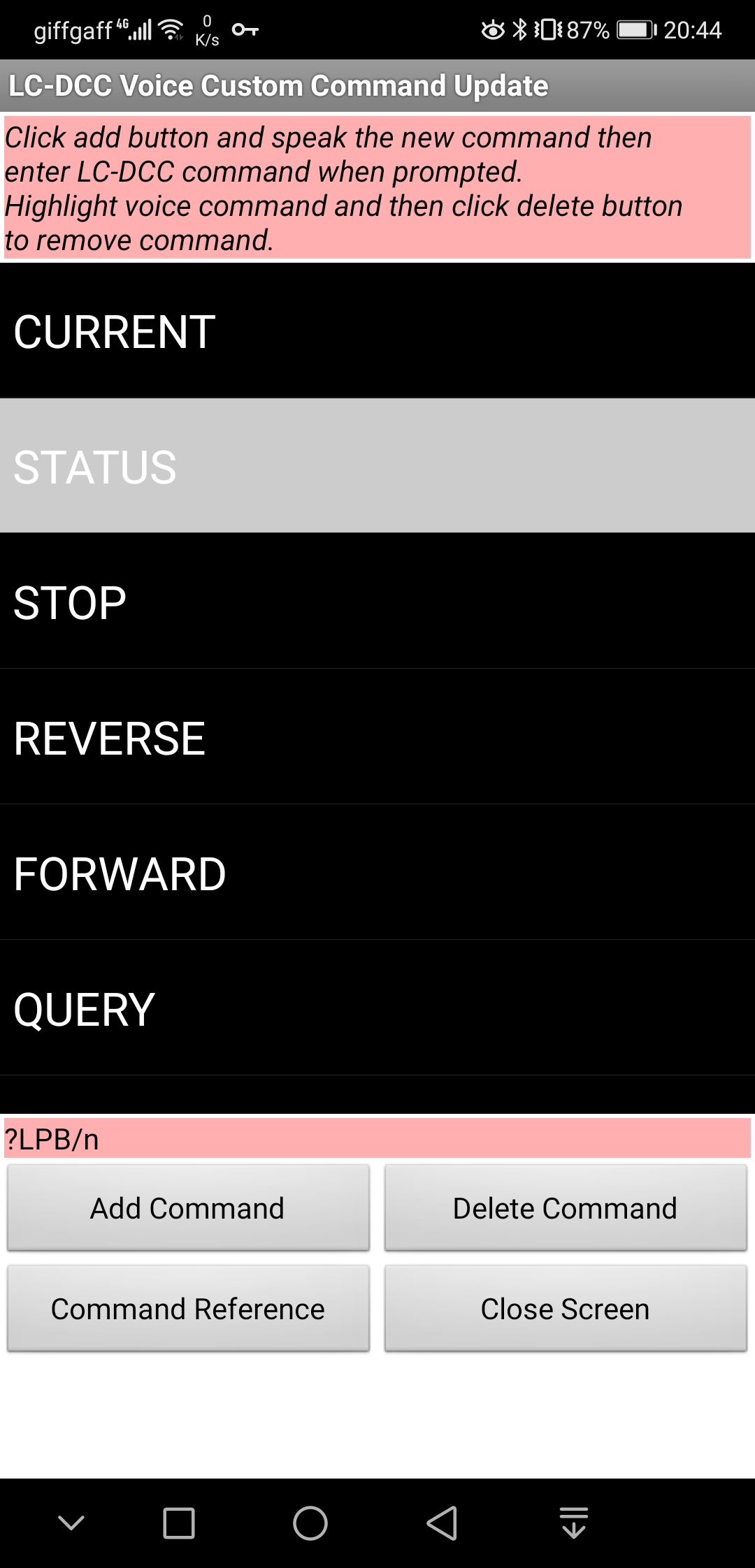

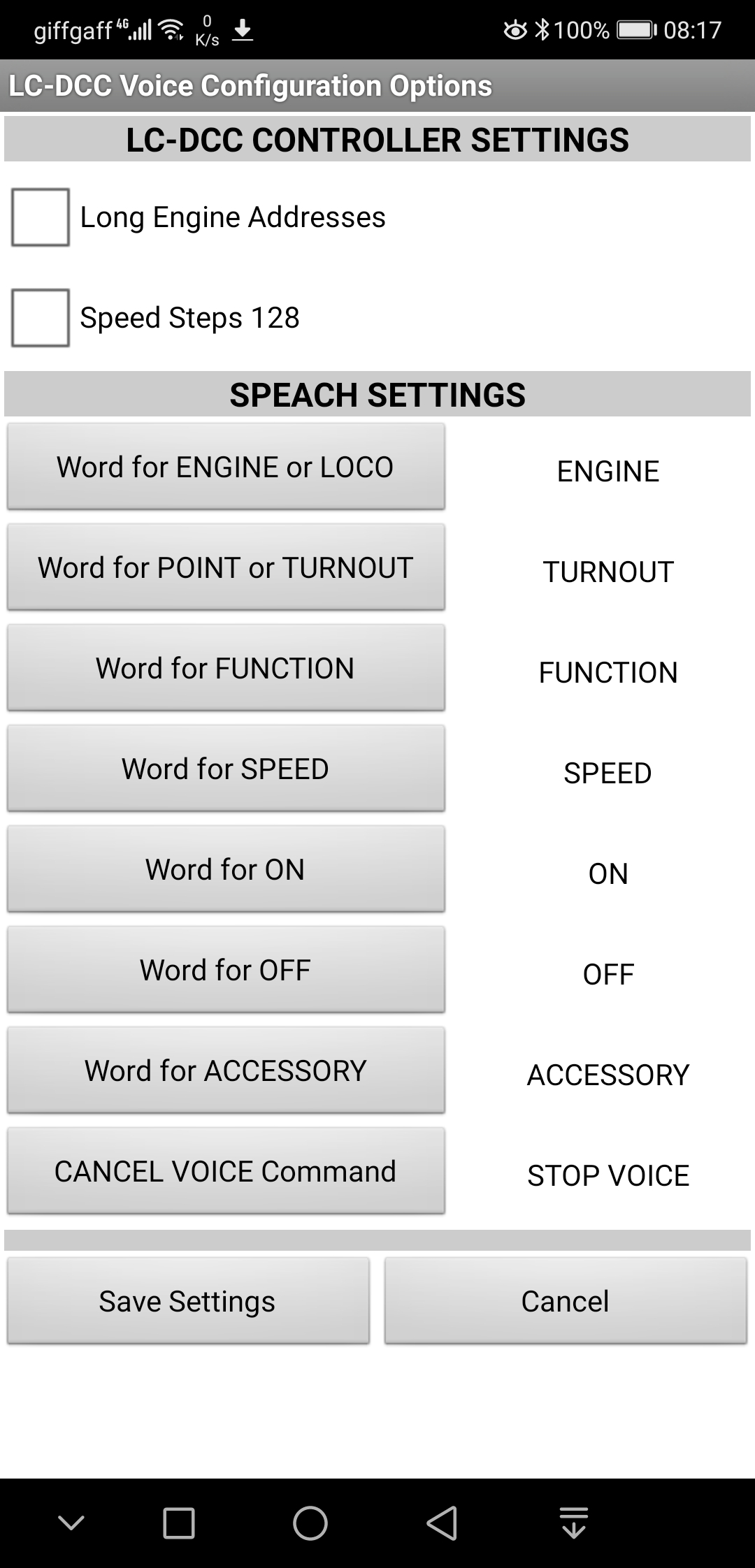

Start Screen	Custom Commands Screen	Configuration Screen	License Screen
